S.M.R. Engineering Services

5" Gauge 4 Wheel Sprung Chassis Kit (Plain Disc Wheel)

5" Gauge 4 Wheel Sprung Chassis Kit (Plain Disc Wheel)

Regular price £165.50
Regular price Sale price £165.50
Sale Sold out
Tax included.
Coupling Type
Spring Type
Wheelset Assembly

A simple 4 wheel wagon chassis for 5" gauge, supplied as a bolt together kit.

The frame is constructed from laser cut and folded steel, with 6mm holes on the top of the channel sections for you to fit your own floor or body to.

CNC machined wheels and axles, running in sealed roller bearings.

Parts are supplied unpainted.

Overall dimensions:

Length: 17.5"

Width: 10"

Height: 4.5"

Wheelbase: 10.75"

Sprung Kit

Kit comprises:

  • 2 x side channels
  • 2 x buffer beams
  • 4 x Channel to buffer beam angles
  • 4 x 3 3/16" diameter Plain Disc Wheels
  • 2 x Axles
  • 4 x Small W Irons, Axleboxes and Springs
  • 2 x couplings - single slot or triple slot
  • All nuts and bolts required to finish



12kg Sprung Chassis Kit

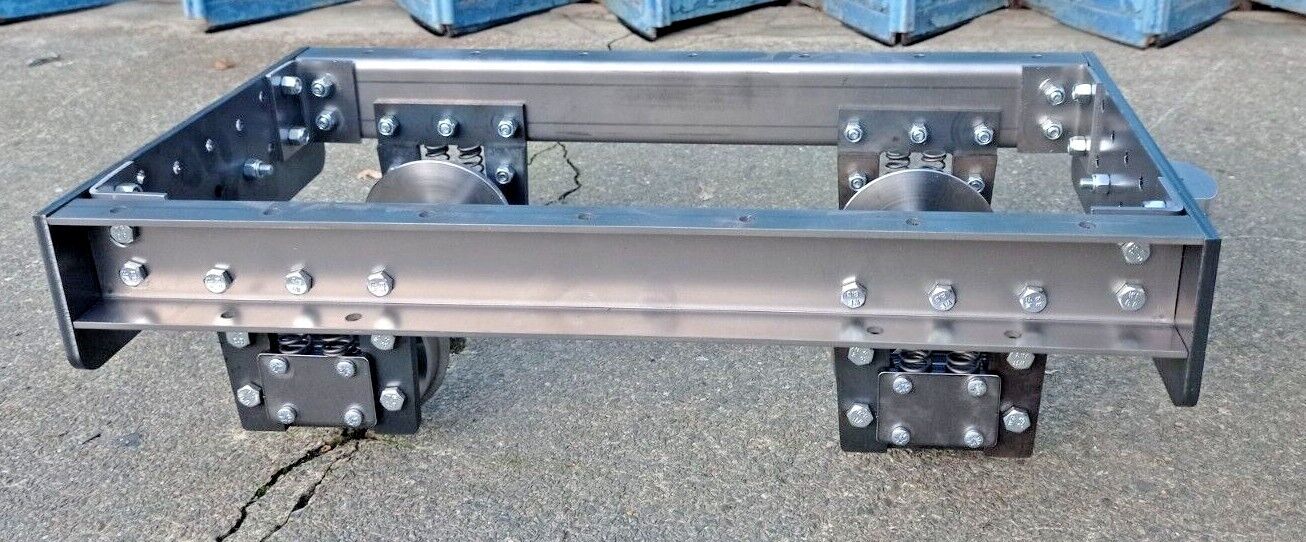

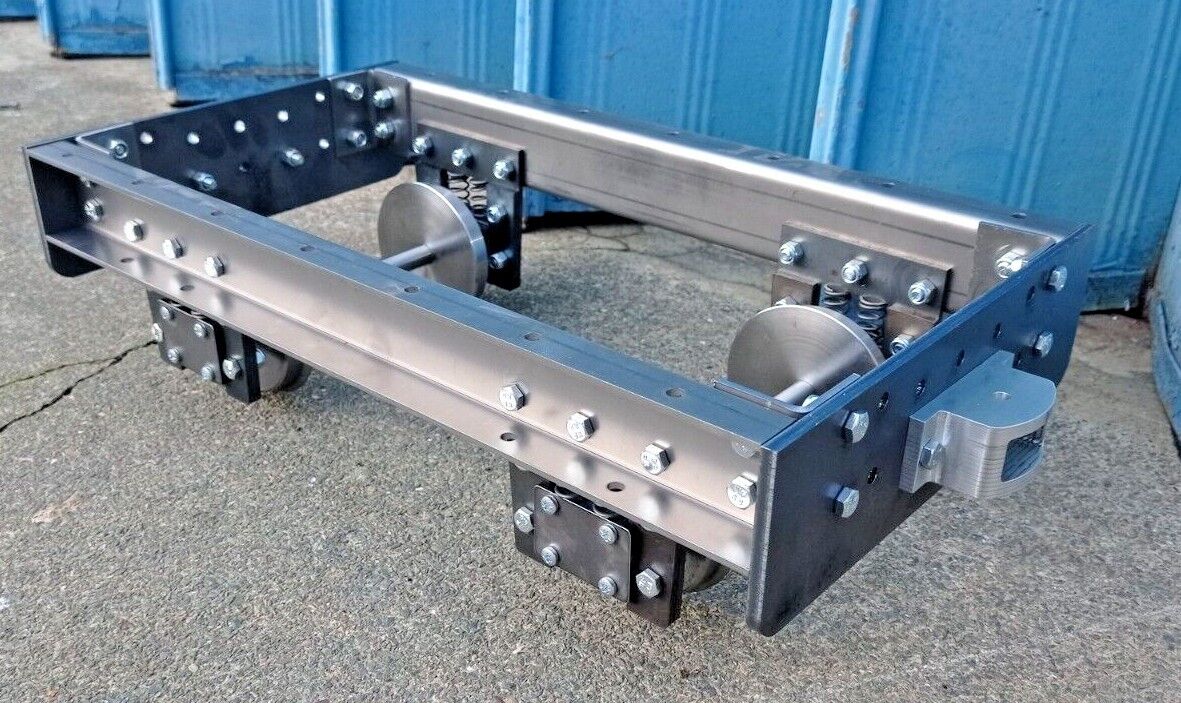

Please note - kits now include our one piece axleboxes, rather than the bolt together axleboxes shown in the photo
