Triple Slot Coupling - 7¼" Gauge

Suitable for 7¼" gauge miniature railways.

Constructed from 6mm laser cut mild steel.

Triple Slot Coupling: 80mm wide, 90mm high, 40mm deep, mounting holes at 60mm centres horizontally/42mm vertically.

For all couplings mounting holes and coupling pin holes are sized to accept M8 bolts/an 8mm coupling pin.

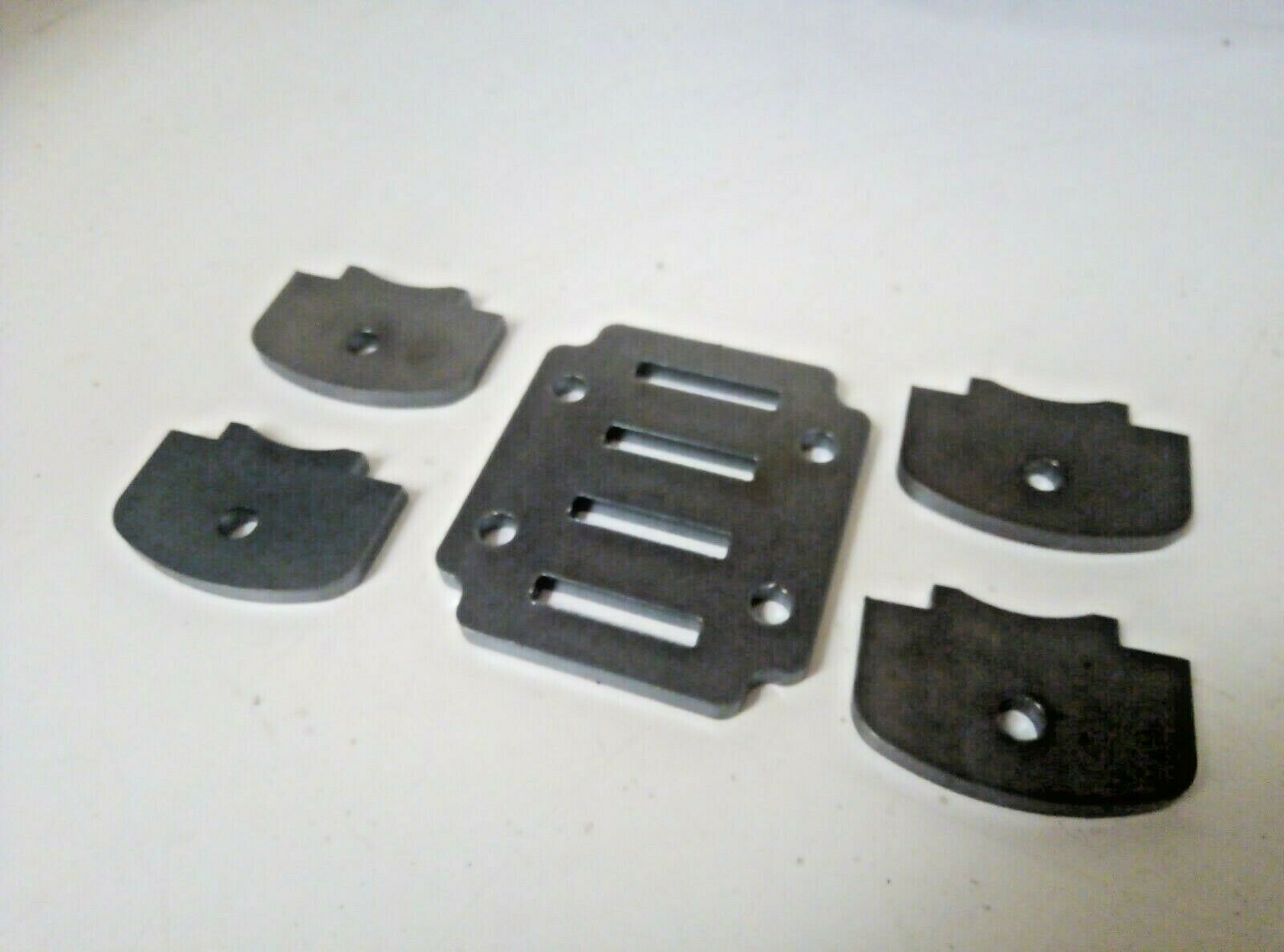

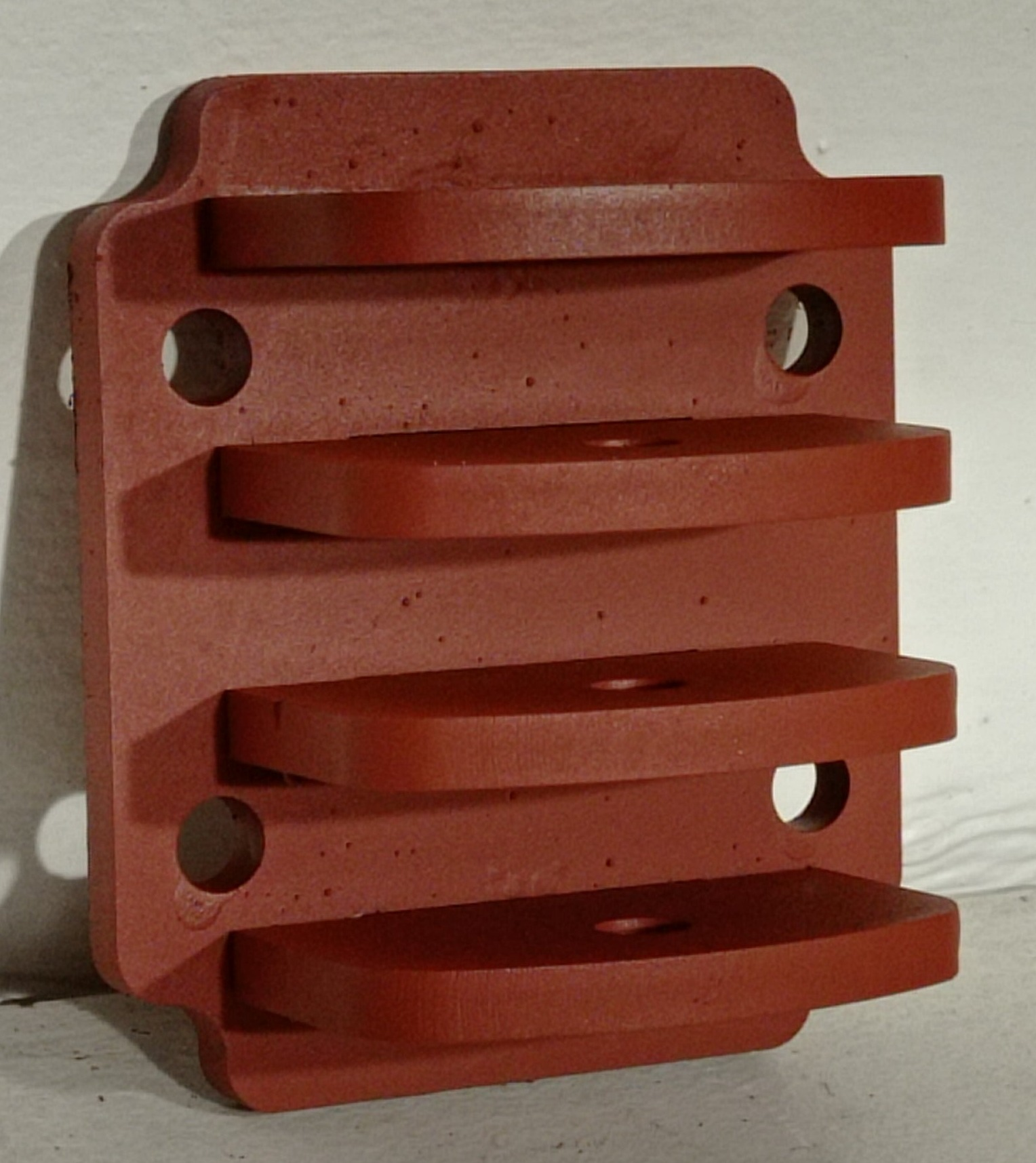

Supplied either as a multi piece kit for you to assemble, weld and paint or an assembled coupling finished in red primer

Weight 0.65kg

Assembly Instructions for kit
