Small Bolt on W Iron & Axlebox - 12mm Bearing

Small Bolt on W Iron & Axlebox - 12mm Bearing

£15.00
£15.00
Sale Sold out
Tax included.

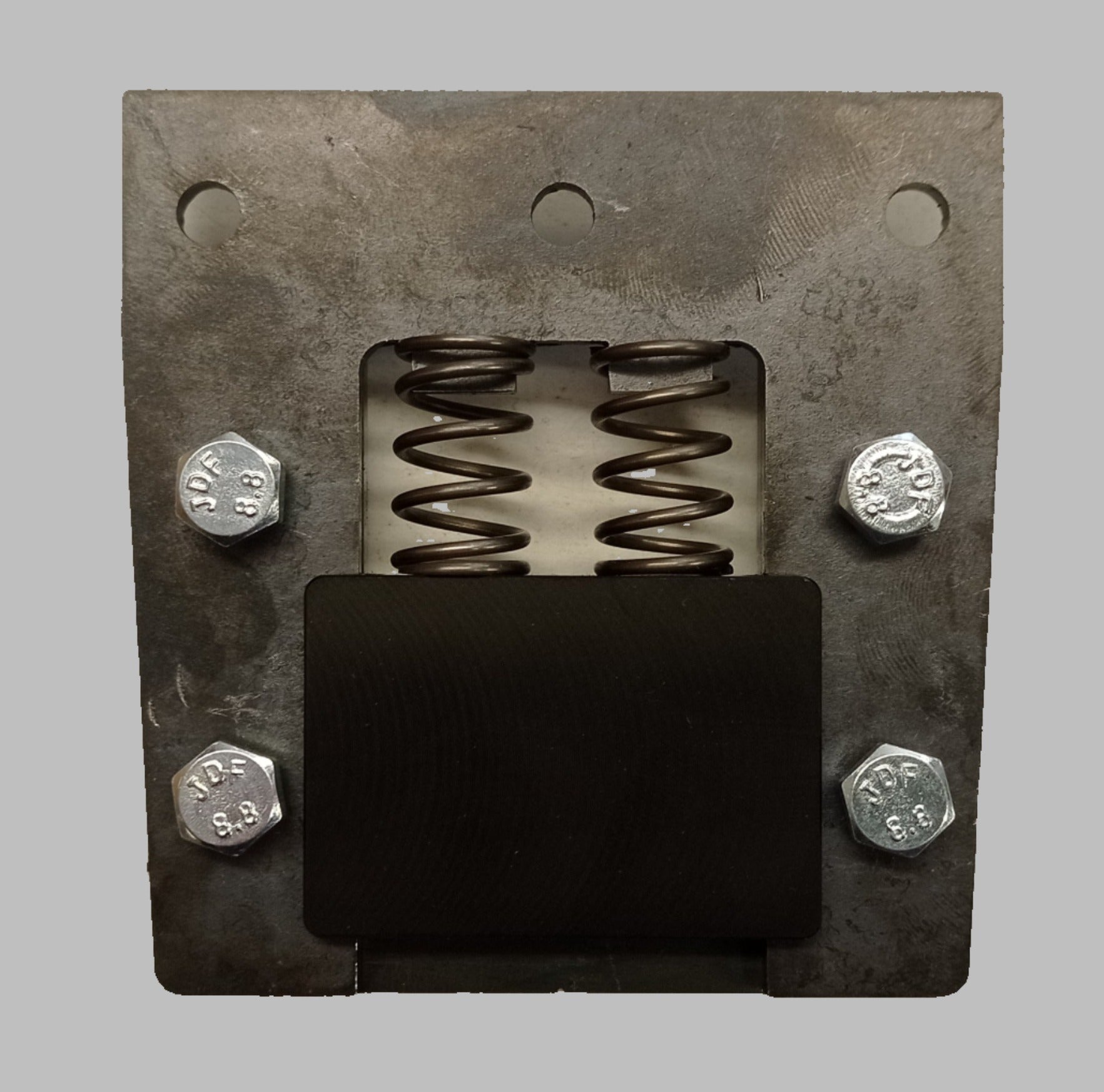

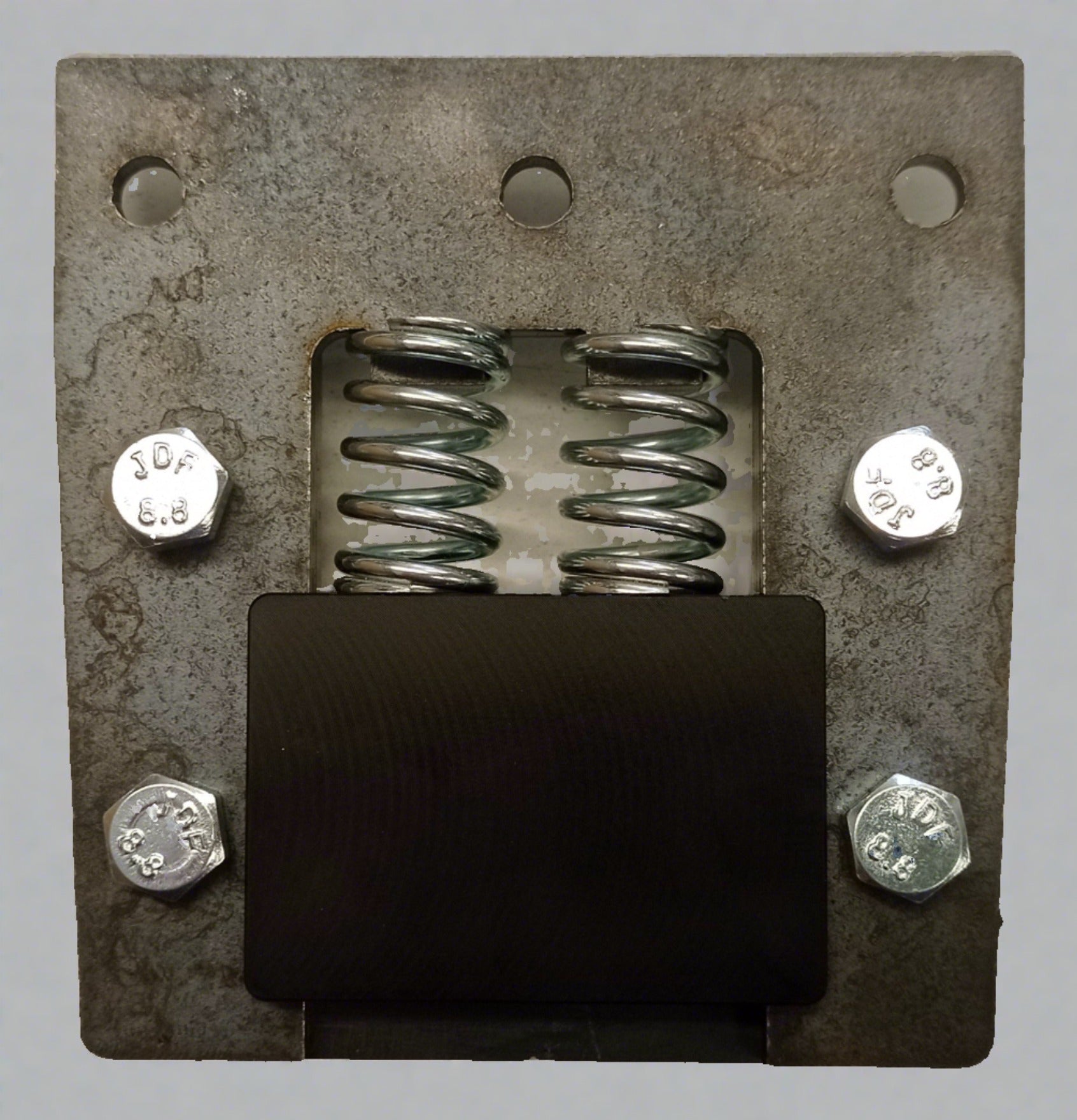

Developed following a customer request, a 'small' sized W-Iron and axlebox.

Suitable for 5" gauge or light duty 7 1/4" gauge

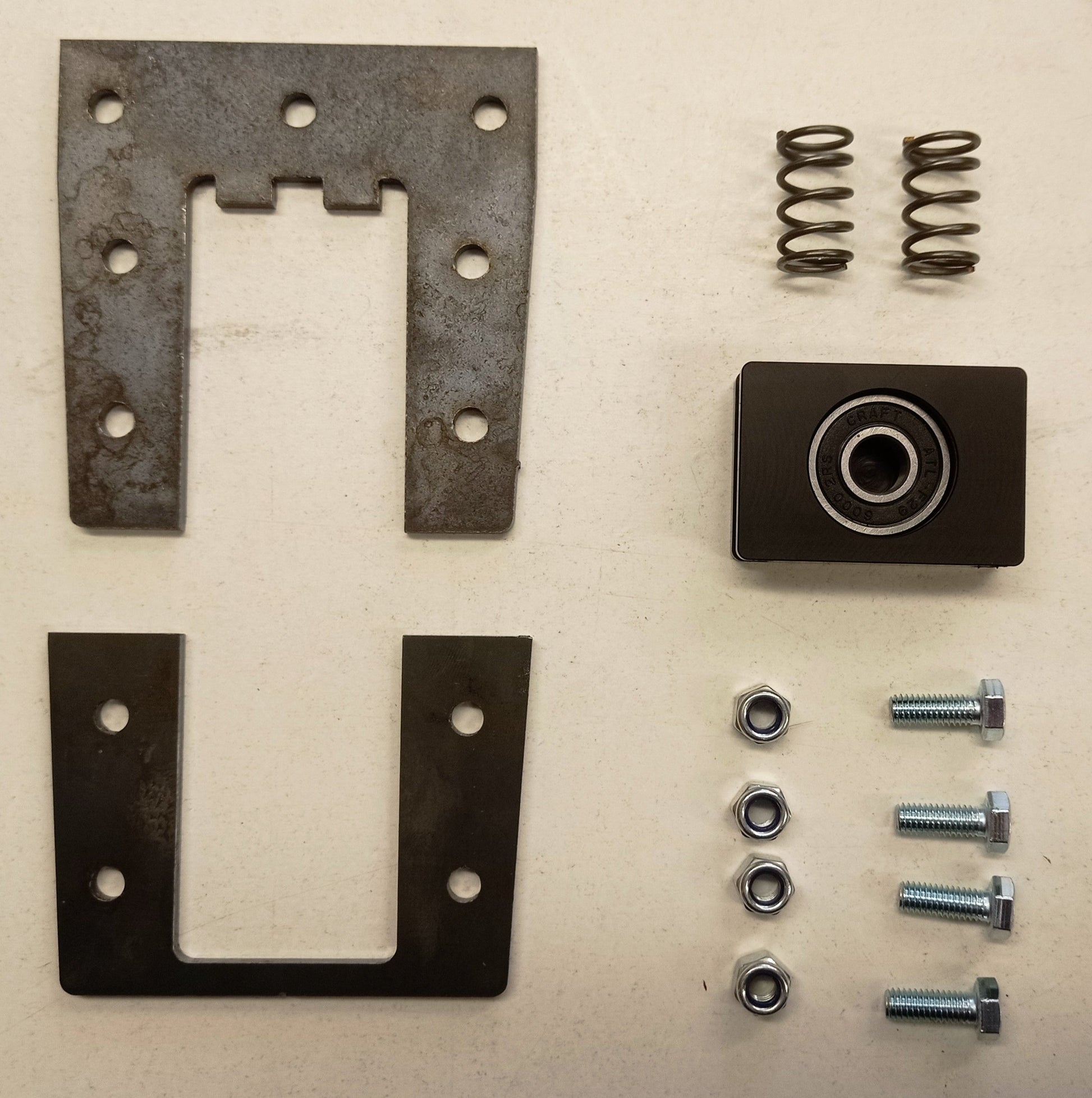

Supplied as a simple bolt together kit:



  • 4mm laser cut steel W Iron
  • 4mm laser cut steel W Iron keep
  • CNC machined Acetal axlebox with 12mm sealed roller bearing (suits our 7 1/4" standard gauge axles)
  • 2 x Springs
  • All required nuts and bolts will be included

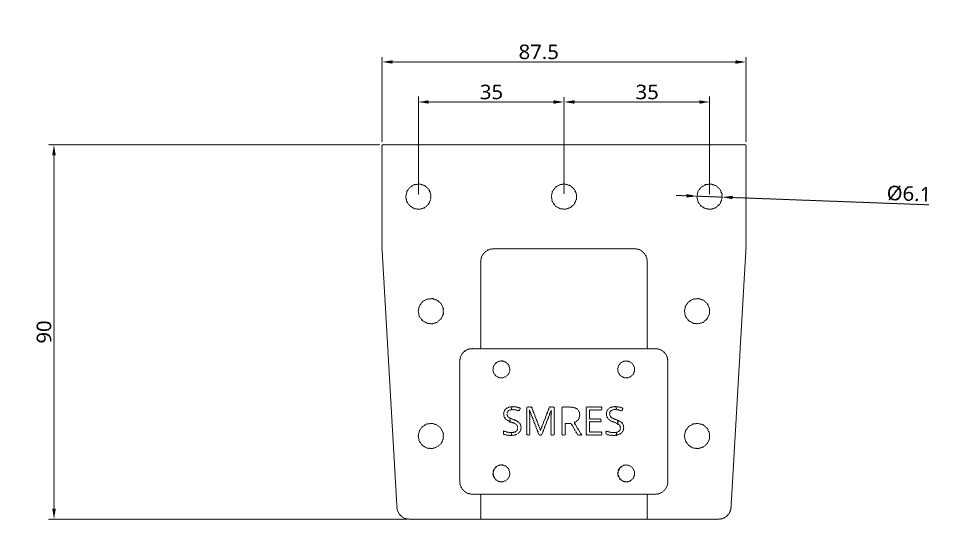

Overall dimensions are 90mm high by 87.5mm wide.

Available with a choice of two spring types:
  • Standard - 9.76N/mm spring rate - most suitable for non-passenger carrying stock and small locomotives
  • Heavier Duty - 24.06N/mm spring rate - more suitable for driving wagons and passenger stock
