Large Bolt on W Iron for 7¼" or 10¼" gauge - with Bearing & Spring

Large Bolt on W Iron for 7¼" or 10¼" gauge - with Bearing & Spring

Regular price $39.00
Regular price Sale price $39.00
Sale Sold out
Tax included.
Pillow Block or Take Up Bearing (Size)

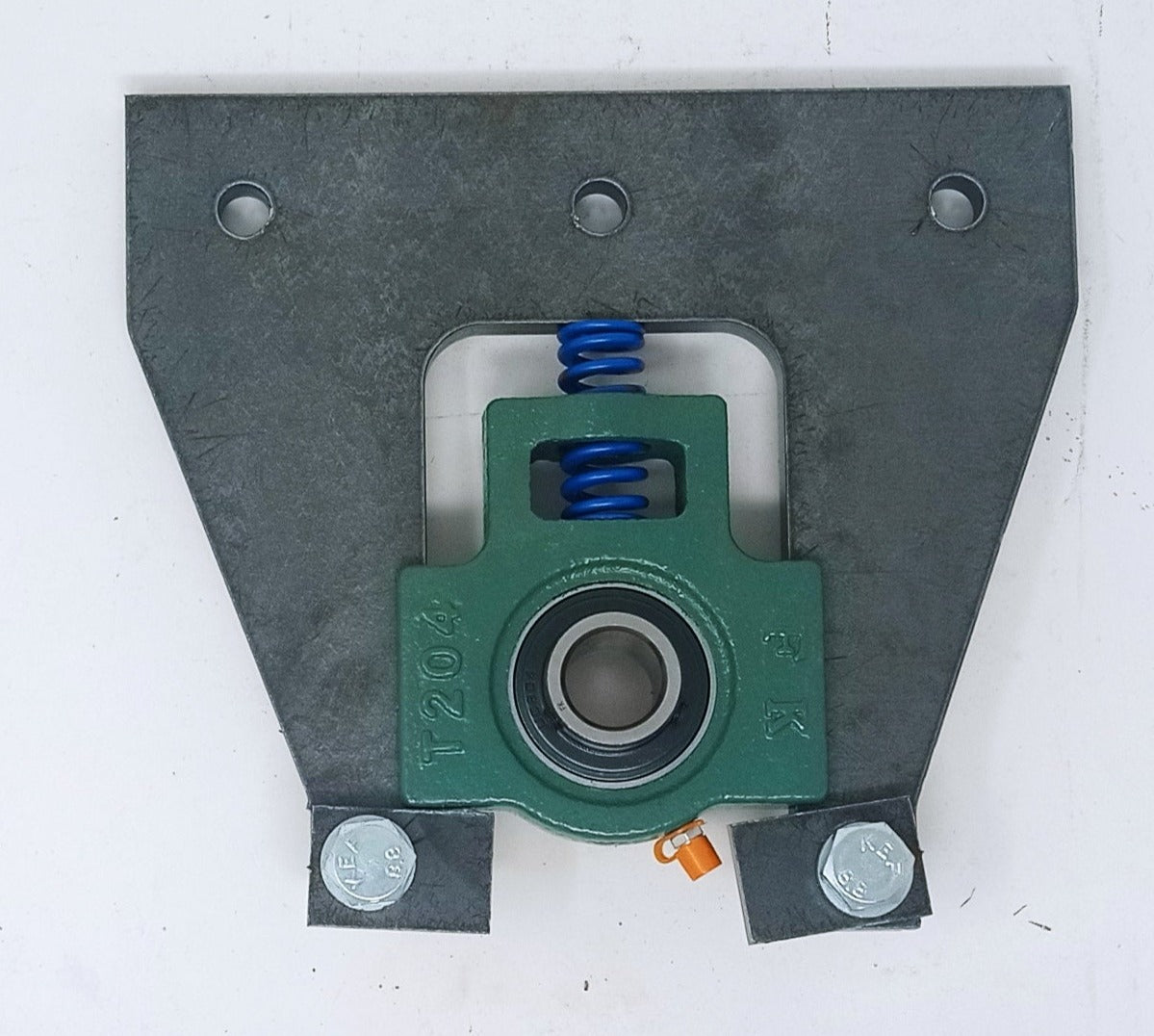

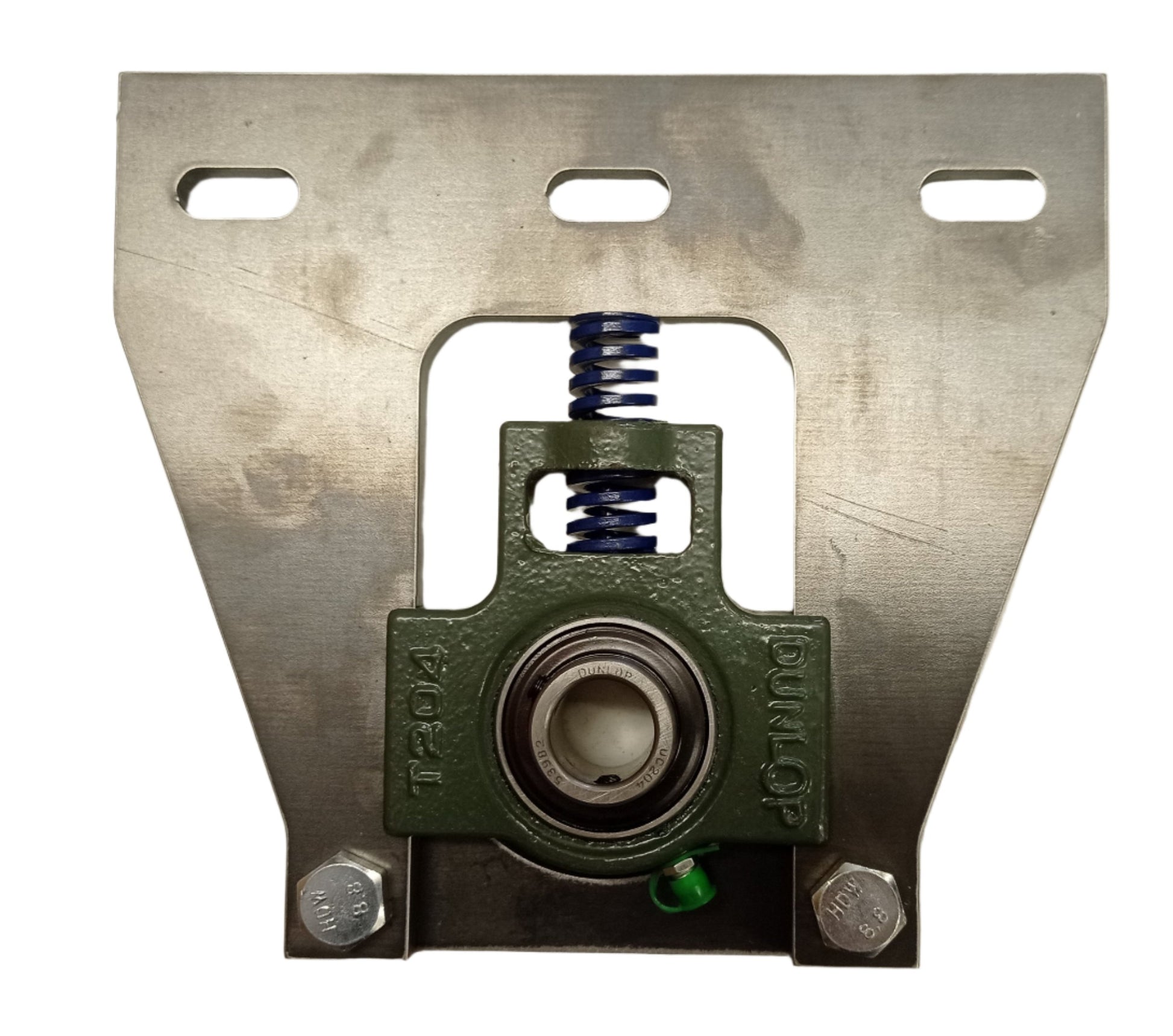

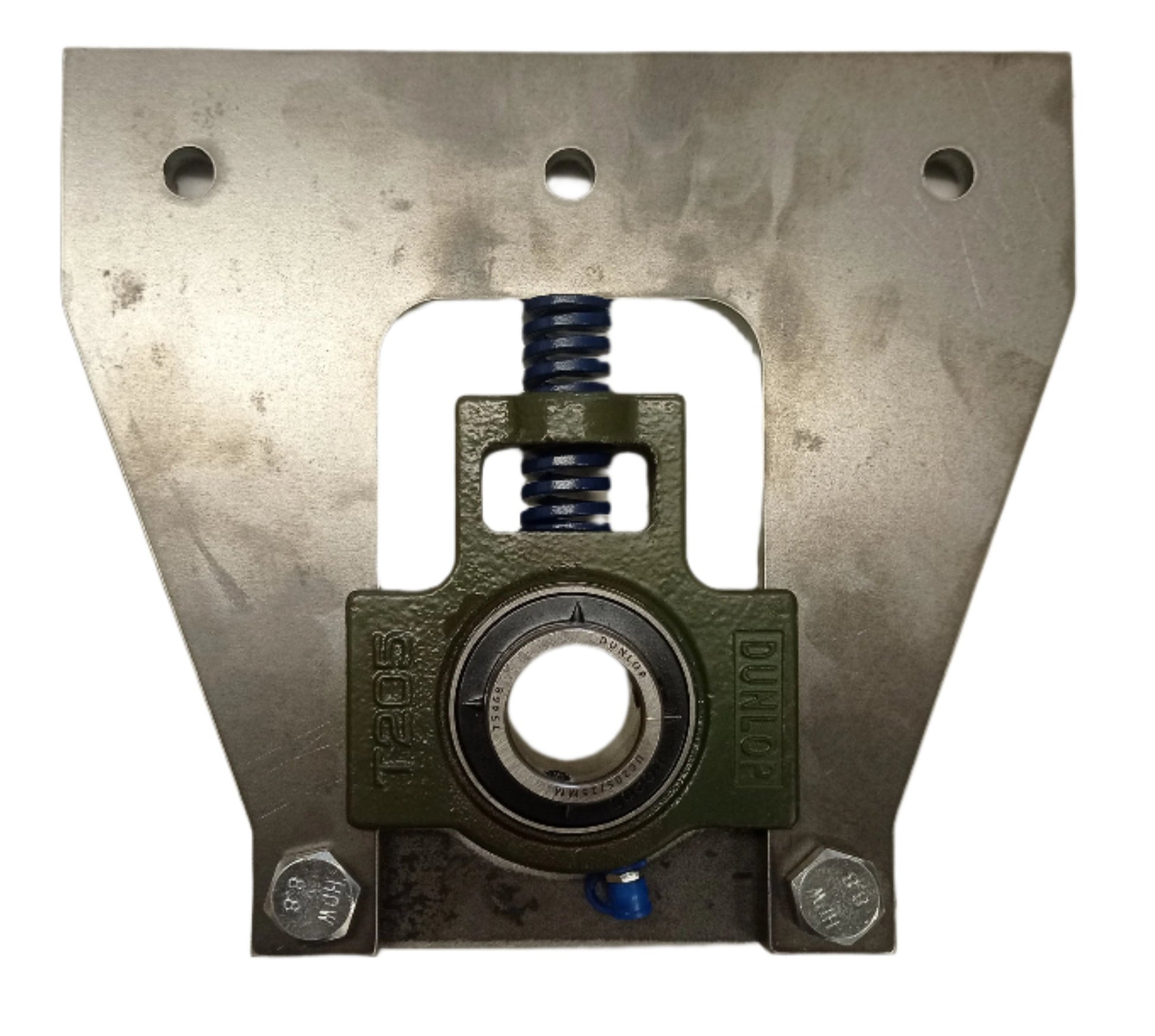

Large 'bolt on' W-Iron as used in some of our kits



Laser cut from 10mm steel



Ideal for building your own wagons or locomotives

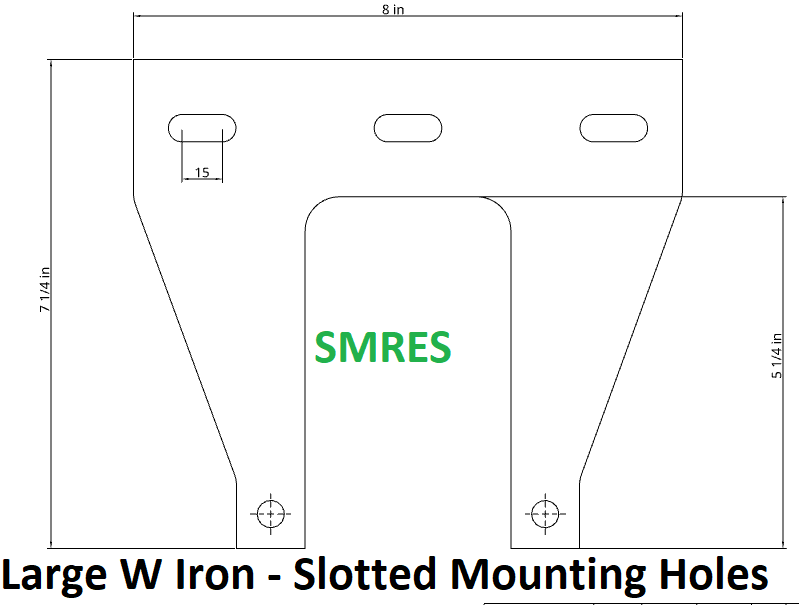

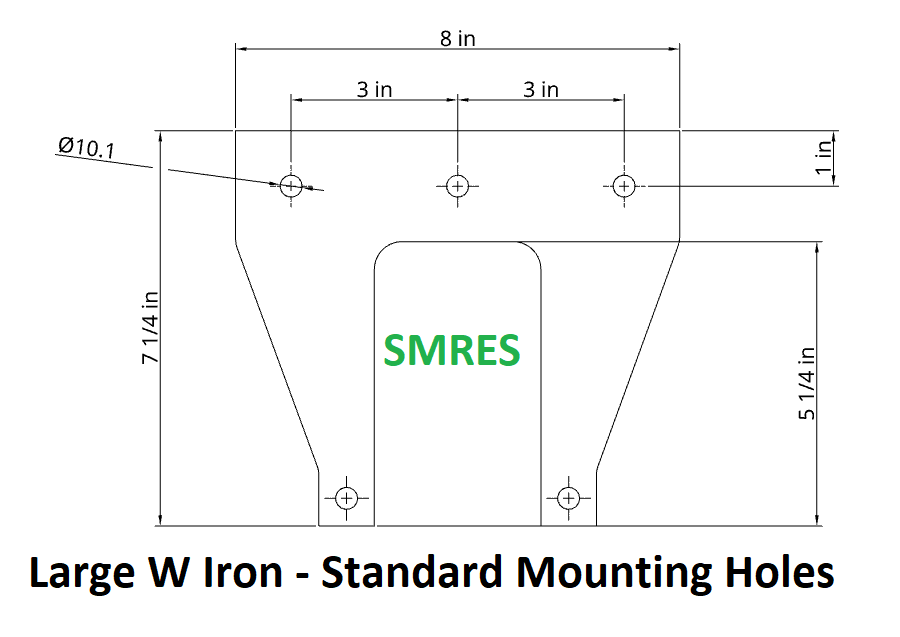

8" wide by 7" high



Slot is 3" wide to accept take up bearings in the 20mm - 25mm (3/4" to 1") size range



Each W Iron comes with two keep plates for the bottom



Supplied with a Take Up Bearing, spring and nuts & bolts for the keep plates
