Large 4 Wheel Chassis Kit - 10 1/4" Gauge (Complete Kit)

Large 4 Wheel Chassis Kit - 10 1/4" Gauge (Complete Kit)

Regular price $626.00
Regular price Sale price $626.00
Sale Sold out
Tax included.
Wheelset Assembly (Assembly)

A heavy duty bolt together 4 wheel chassis, ideal for building a wagon, coach or even a locomotive!

 Constructed from folded steel channel with W Irons. All parts are laser cut with holes for simple bolt together construction.

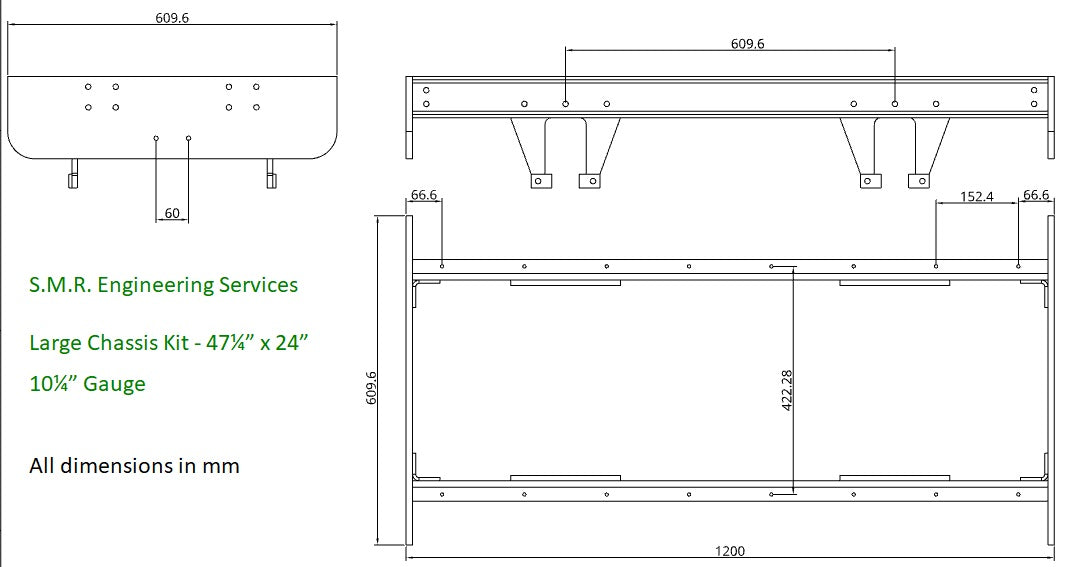

  • 47.25" long x 24" wide - for 7 1/4" or 10 1/4" gauge



A kit includes the following parts:

  • 2 x side channels
  • 2 x buffer beams
  • 4 x W Irons (10mm steel)
  • 8 x W Iron keeps
  • 4 x Channel to buffer beam angles
  • All nuts and bolts required to assemble



  • 4 x 6" diameter wheels
  • 2 x 16" axles to suit the wheels and bearings
  • 4 x Take Up Bearings
  • 4 x Medium Duty Springs

The wheels, axles and bearings can be supplied fully assembled or unassembled (e.g. if you wish to add sprockets to the axles) - please select which you require when ordering!
