HD Chassis Channel for 7¼" or 10¼" Gauge: 3" x 1.5" x 6mm

Folded Steel channel, as used in our chassis/frame kits

3" high x 1.5" wide x 6mm thick

Two lengths available: 35" (890.4mm) or 46¼" (1176mm).

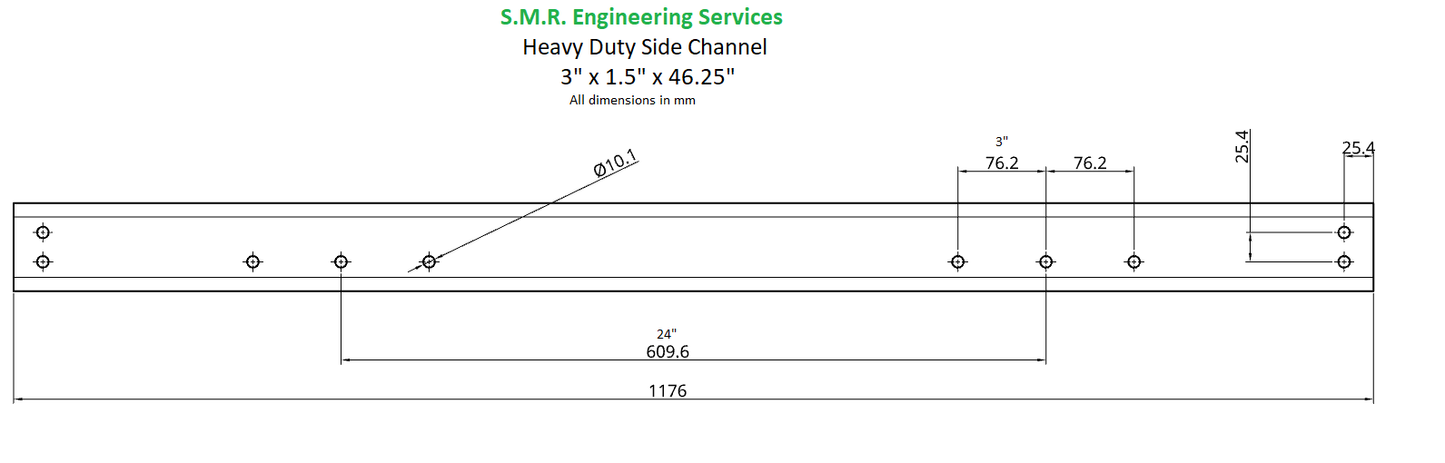

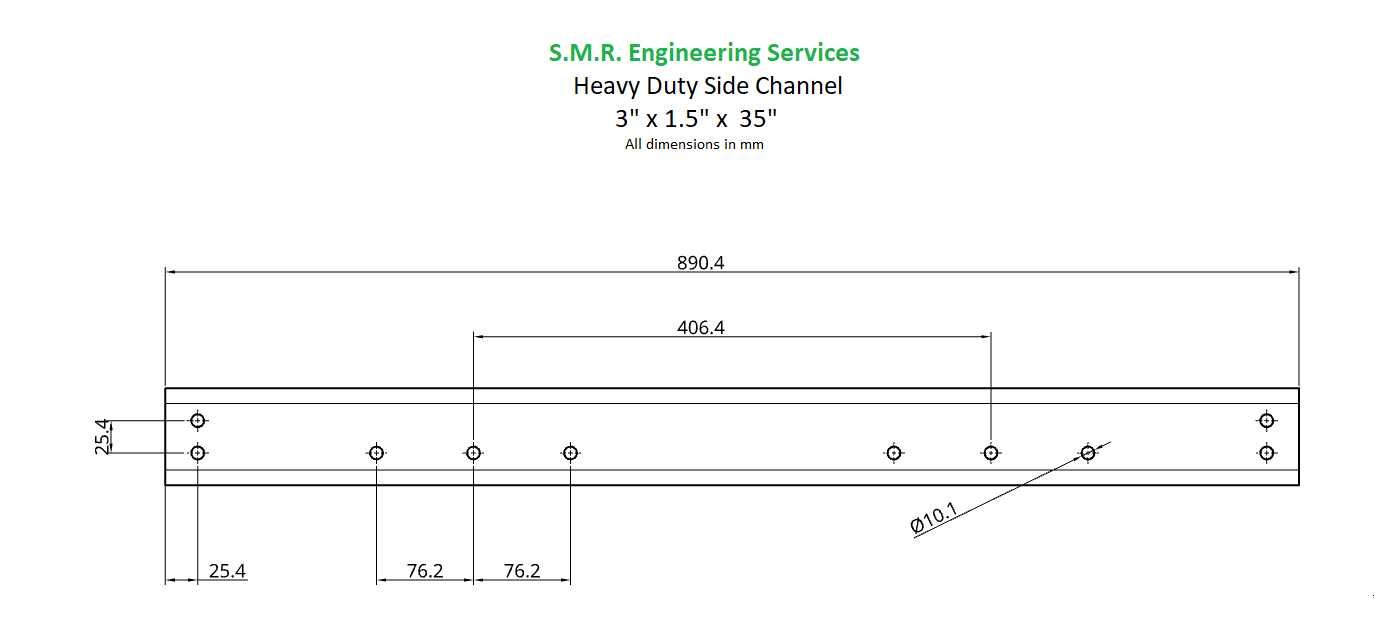

Holes cut to suit M10 bolts - see drawings for hole positions
