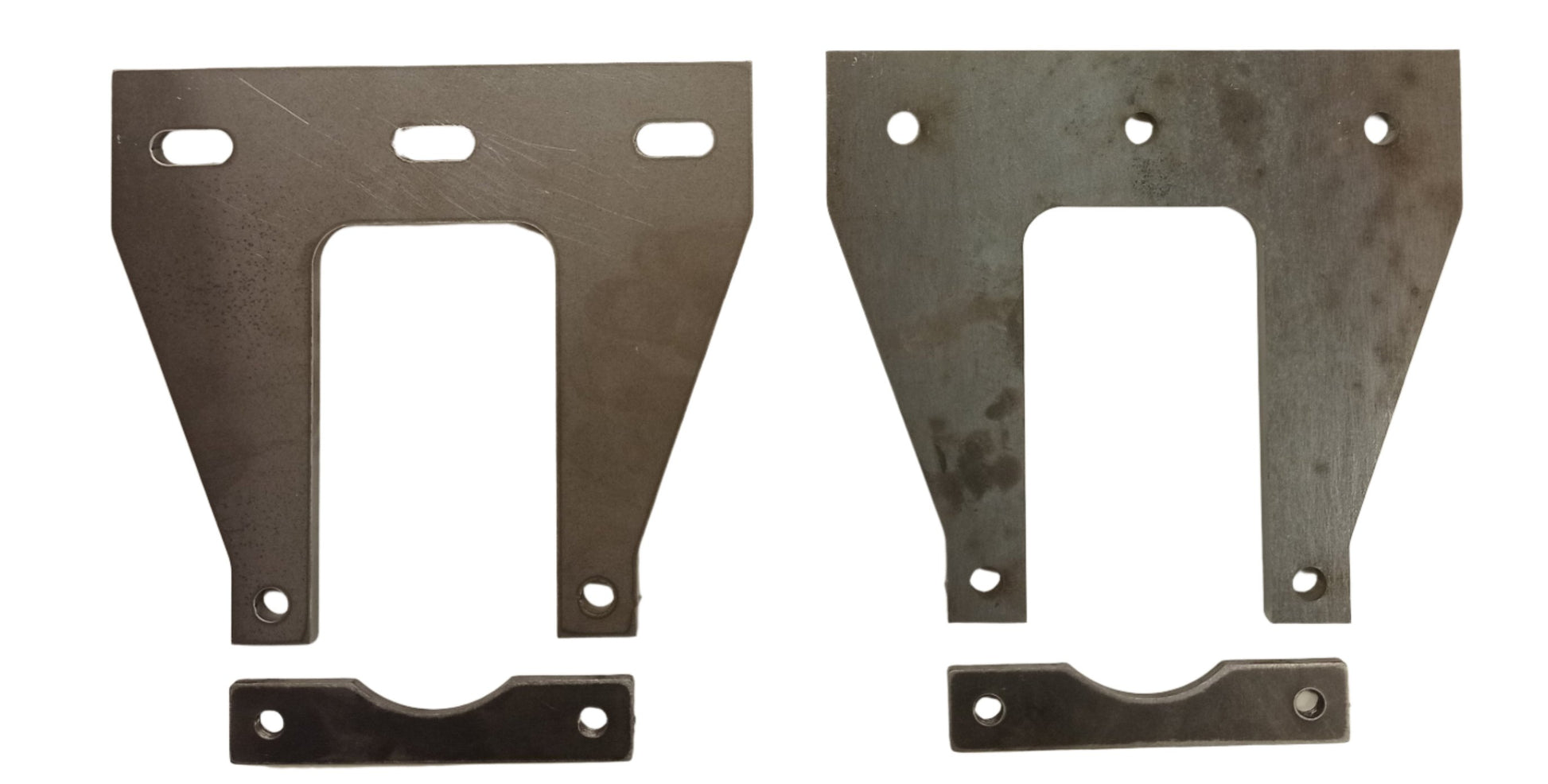

Large Bolt on W Iron for 7¼" or 10¼" gauge - Steel Parts Only

Large 'bolt on' W-Iron as used in some of our kits

Laser cut from 10mm steel

Ideal for building your own wagons or locomotives

8" wide by 7" high

Slot is 3" wide to accept take up bearings in the 20mm - 25mm (3/4" to 1") size range

 Weight: 2kg

Each W Iron is available with the following options:

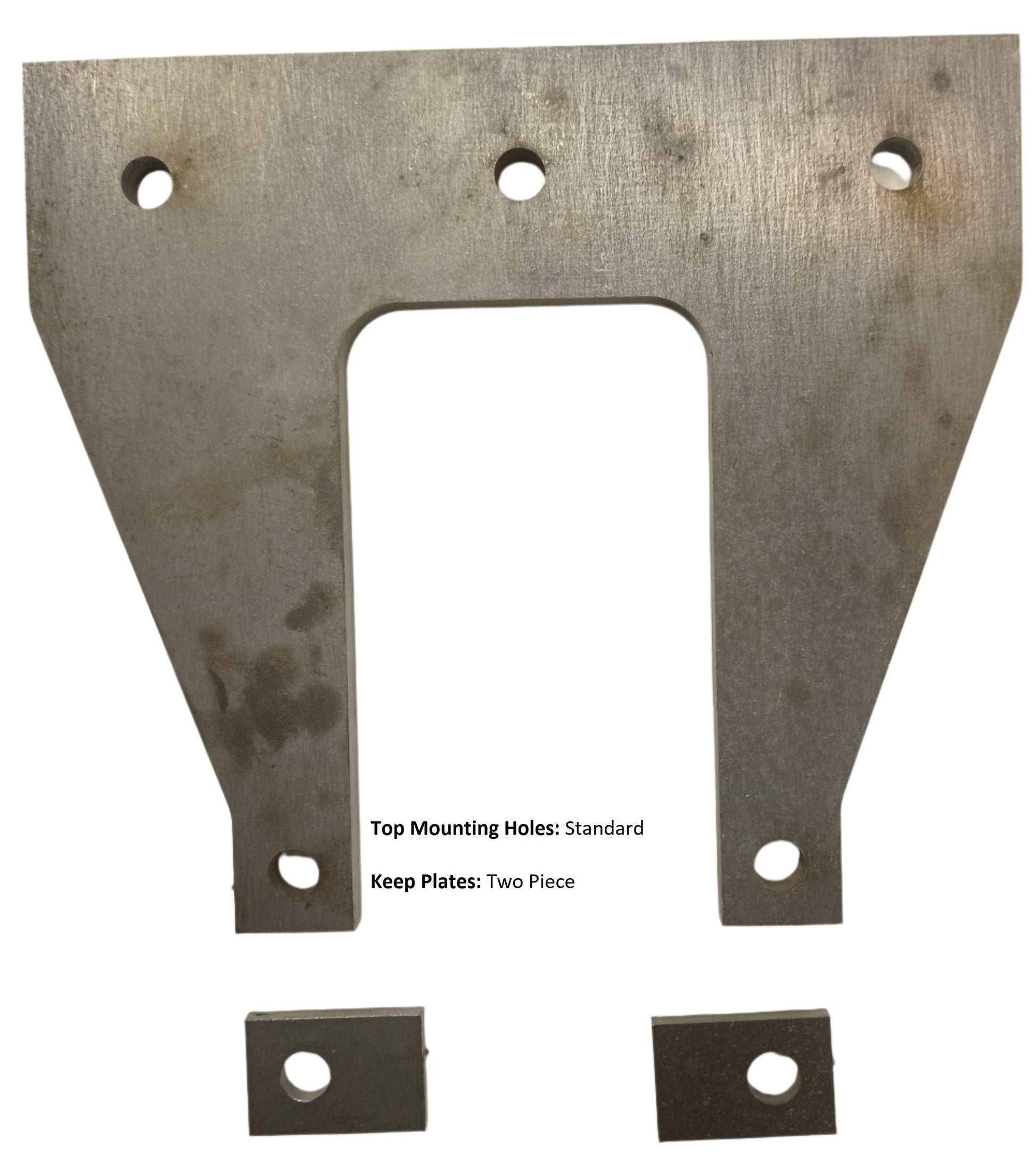

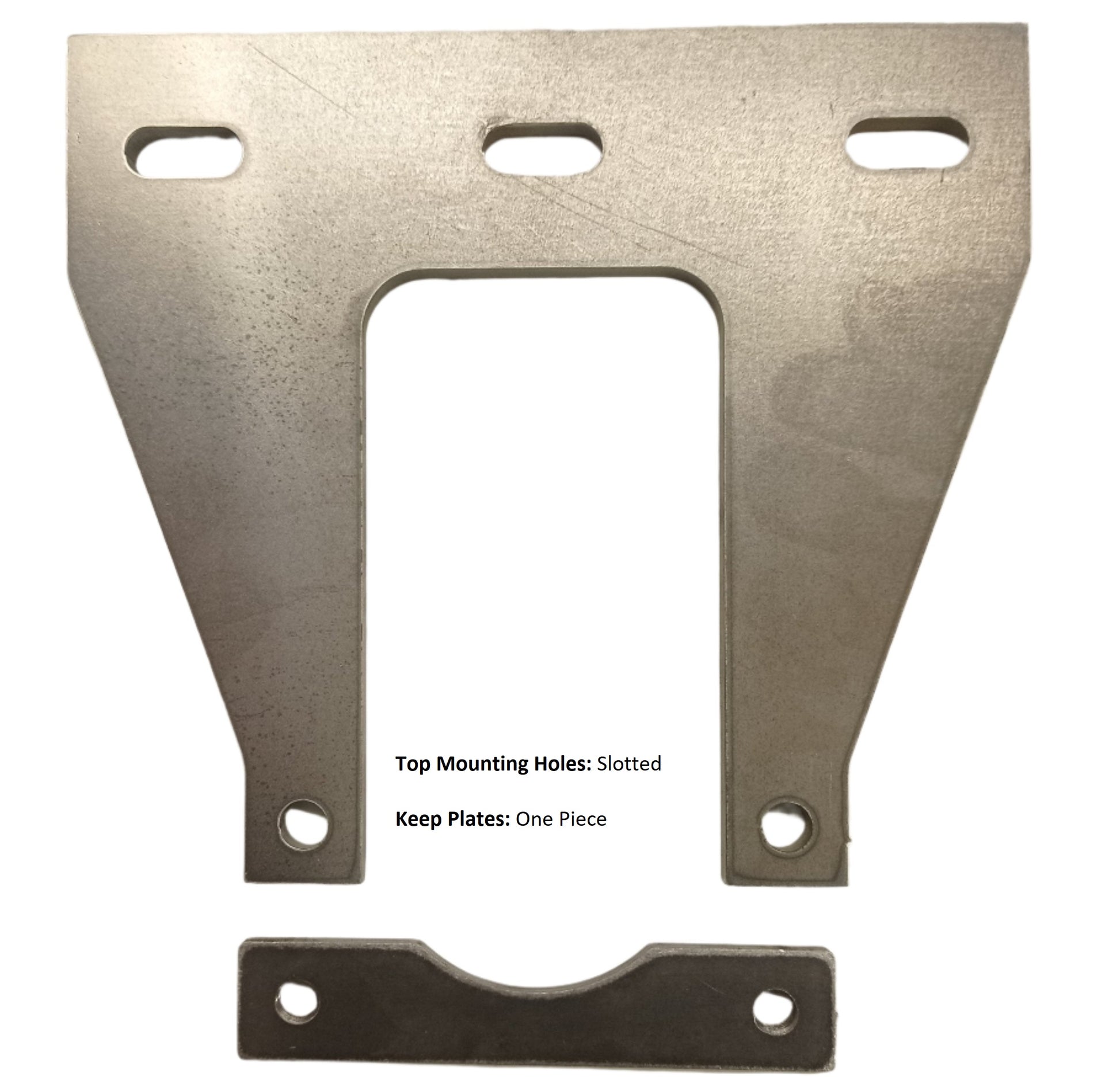

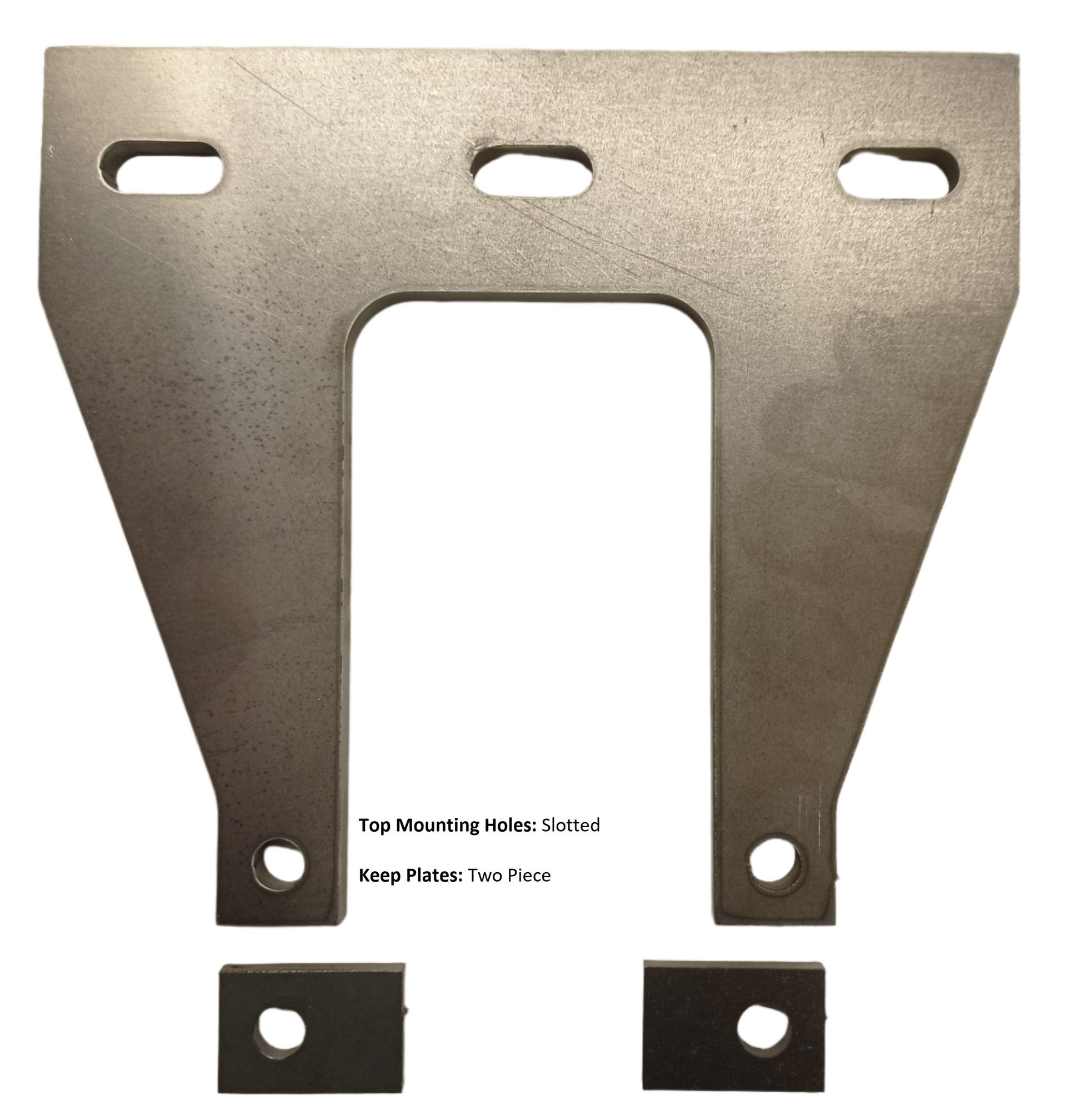

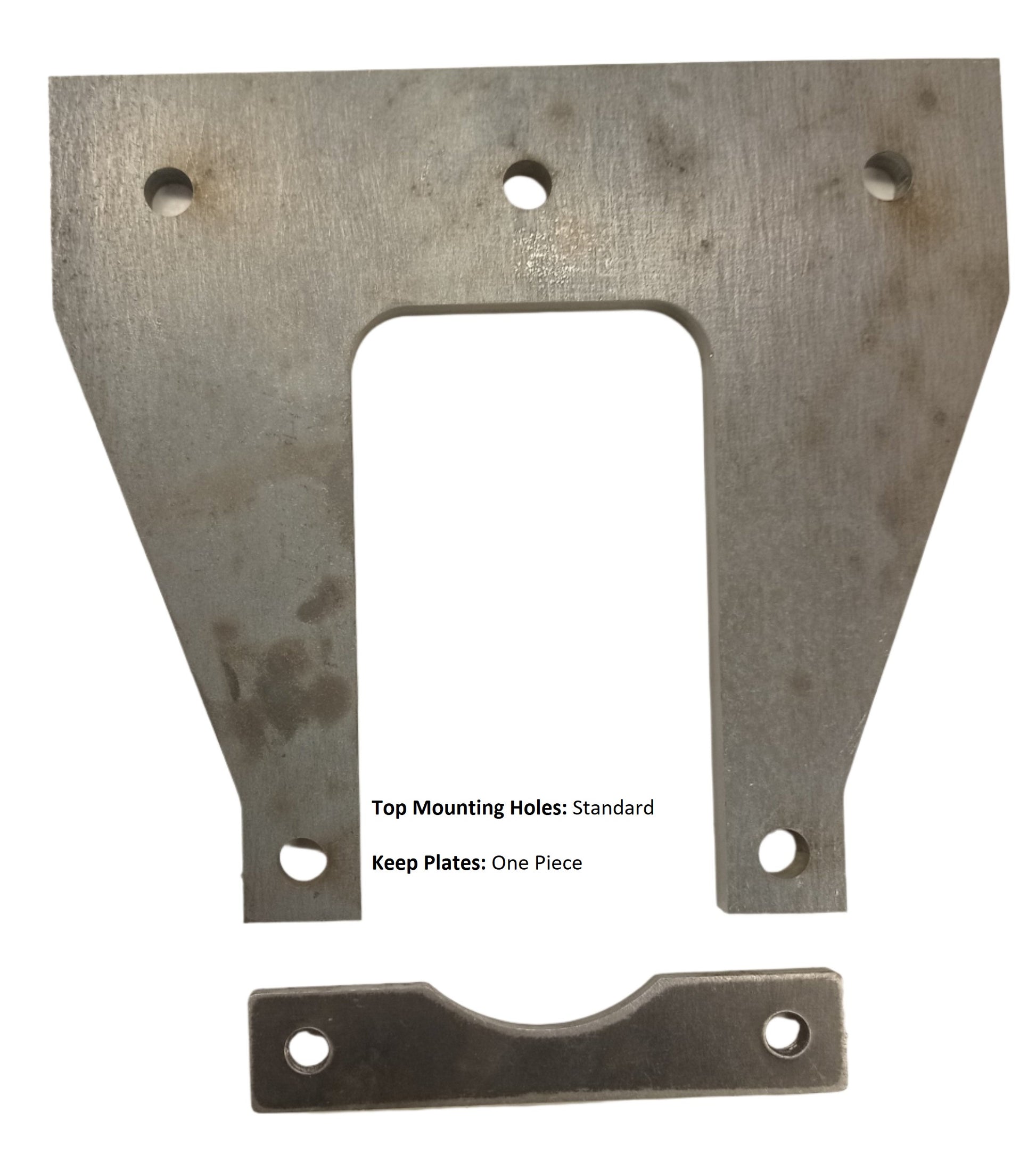

Top Mounting Holes: Standard 10mm hole or Slotted 10mm hole

Finish: Unpainted or Powder Coated Black. Please note powder coated parts have an additional 4-6 week lead time.
