Large 4 Wheel Chassis Kit - Steel Frame Parts Only
A heavy duty bolt together 4 wheel chassis, ideal for building a wagon, coach or even a locomotive!
Constructed from folded steel channel with W Irons. All parts are laser cut with holes for simple bolt together construction. The W Irons will take standard take up bearings with a 3" slot
Four sizes available:
- 36" long x 18" wide
- For 7 1/4" gauge only
- Suits a 12" long axle
- 18" wheelbase
- 36" long x 24" wide
- For 7 1/4" or 10 1/4" gauge
- Suits a 12" or 16" long axle
- 18" wheelbase
- 47.25" long x 18" wide
- For 7 1/4" gauge only
- Suits a 12" long axle
- 24" wheelbase
- 47.25" long x 24" wide
- For 7 1/4" or 10 1/4" gauge
- Suits a 12" or 16" long axle
- 24" wheelbase
Steel Frame Parts Only

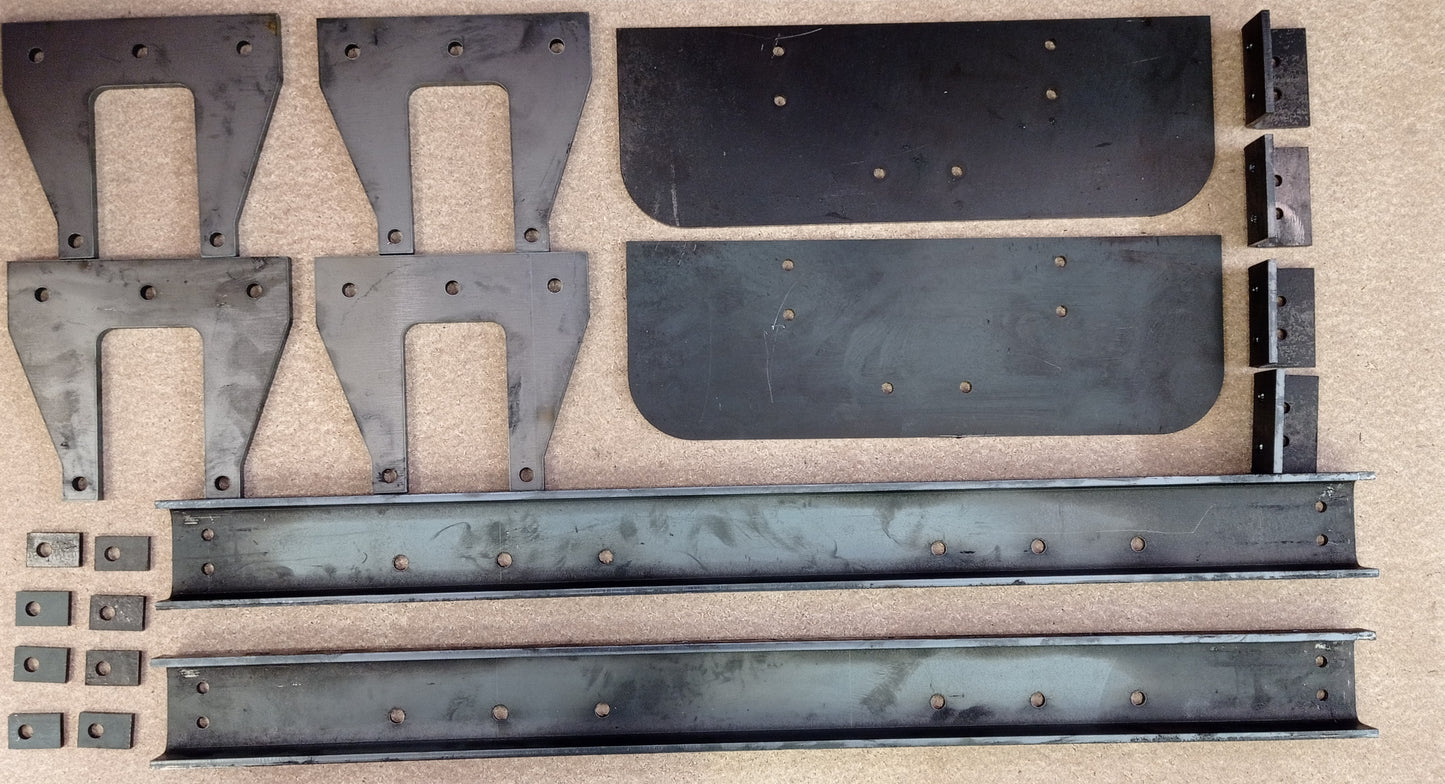

A kit including the following parts:
- 2 x side channels
- 2 x buffer beams
- 4 x W Irons (10mm steel)
- 8 x W Iron keeps
- 4 x Channel to buffer beam angles
You will need wheels, axles, bearings, springs, nuts and bolts to complete.
We also supply this as a complete kit with wheels, axles, bearings and springs
For the 7 1/4" gauge kit please see here
Shipping Weight:
36" x 18" chassis frame = 36kg
36" x 24" chassis frame = 41kg
47.25" x 18" chassis frame = 41kg
47.25" x 24" chassis frame = 46kg
If you are using your own wheels and axles, you may require frame spacers (click here) to space the side channels and W Irons further out. The 18" buffer beam has holes to suit a 12" long axle, the 24" buffer beam has holes to suit a 12" or 16" long axle.
