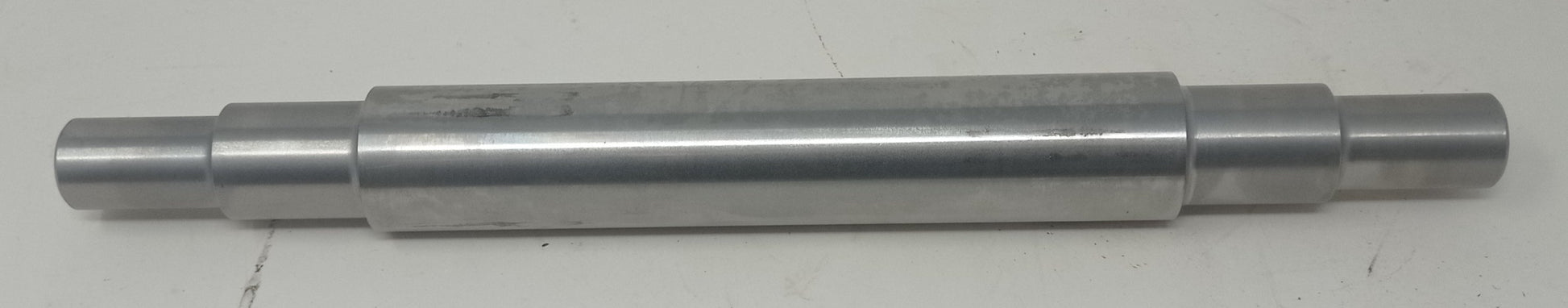

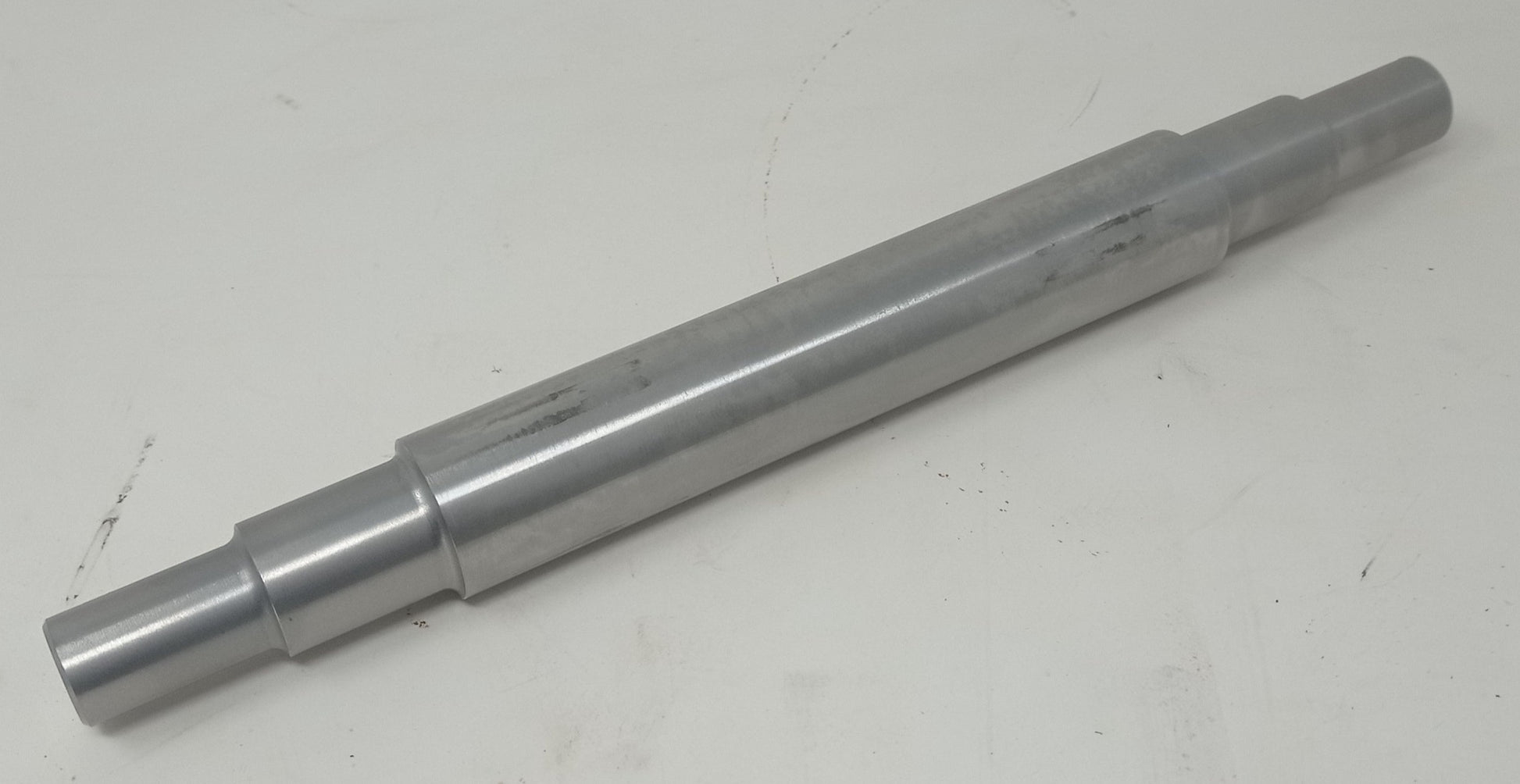

7¼" Narrow Gauge Axle

Axle to suit our 7¼" Narrow Gauge wheels

CNC machined from EN8 steel

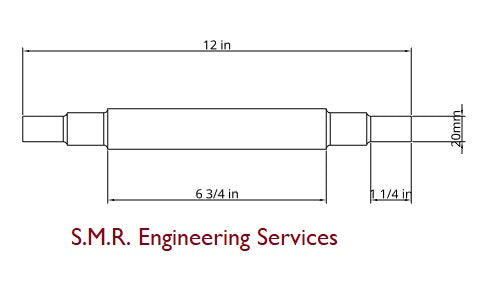

12" long, 32mm axle diameter, bearing journals to suit 20mm bearing

Machined to give a press fit for wheels with a 1" bore

Weight: 2kg

Please note: if using these axles with our wheels you will either need a hydraulic press to assemble the wheels onto the axles, or to heat shrink the wheels onto the axles.

Quantity Discounts

Save 5% on 4 – 7 axles

Save 10% on 8 – 11 axles

Save 15% on 12 – 15 axles

Save 20% on 16+ axles
