5" Gauge 4 Wheel Unsprung Chassis Kit (Plain Disc Wheel)

5" Gauge 4 Wheel Unsprung Chassis Kit (Plain Disc Wheel)

Regular price £110.00
Regular price Sale price £110.00
Sale Sold out
Tax included.
Coupling Type
Wheelset Assembly

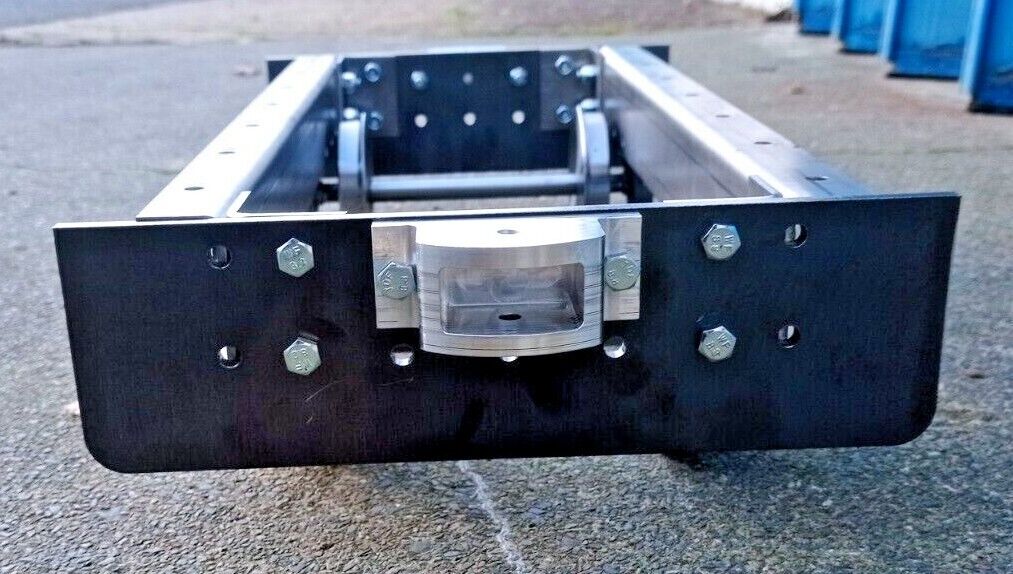

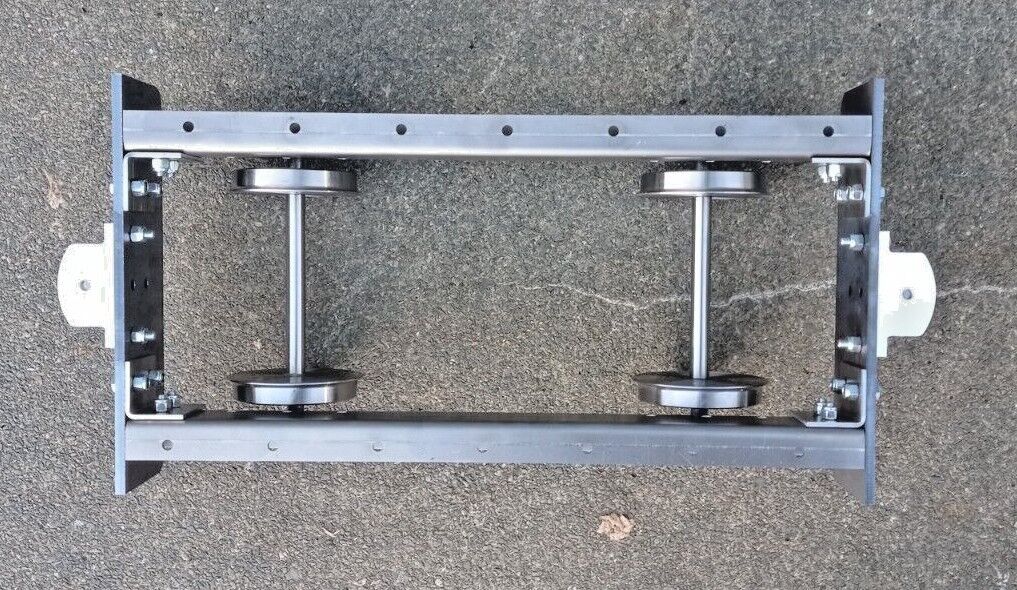

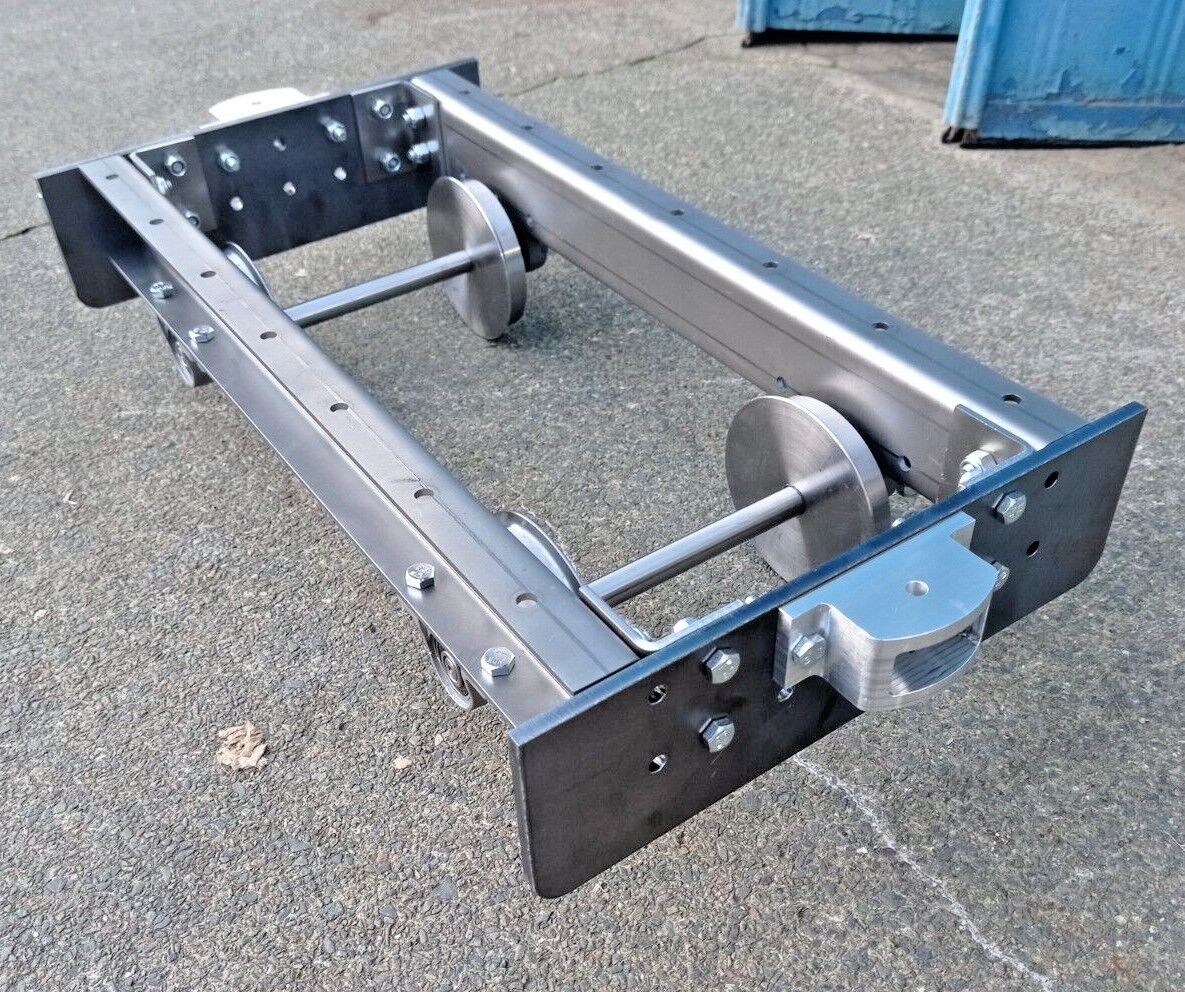

A simple 4 wheel wagon chassis for 5" gauge, supplied as a bolt together kit.

The frame is constructed from laser cut and folded steel, with 6mm holes on the top of the channel sections for you to fit your own floor or body to.

CNC machined wheels and axles, running in sealed roller bearings.

Parts are supplied unpainted.


Overall dimensions:

Length: 17.5"

Width: 10"

Height: 4.5"

Wheelbase: 10.75"

Unsprung Kit

Kit comprises:

  • 2 x side channels
  • 2 x buffer beams
  • 4 x Channel to buffer beam angles
  • 4 x 3 3/16" Plain Disc Wheels
  • 2 x Axles
  • 4 x pillow block bearings
  • 2 x single slot type couplings
  • All nuts and bolts required to finish

Wheels and axles can be supplied as separate parts, or ready assembled



10kg Unsprung Chassis Kit
